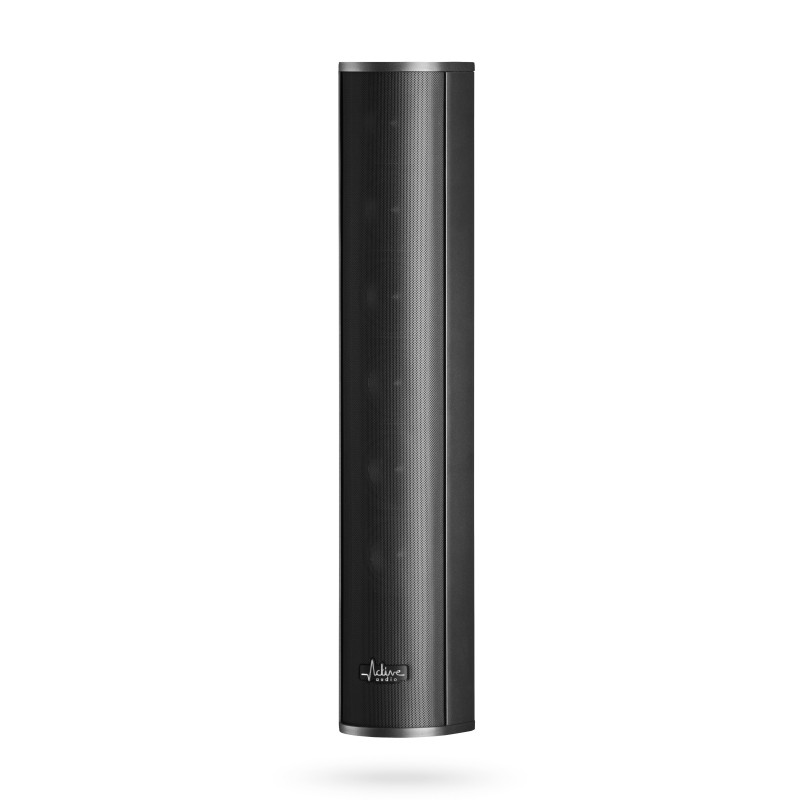

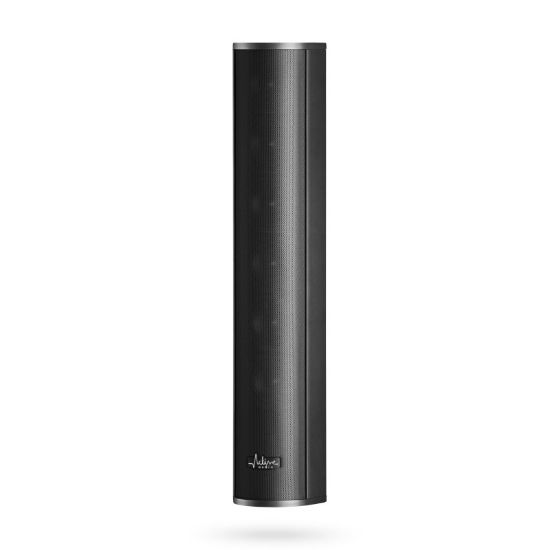

Column loudspeaker (70cm), 100V or 8Ω, EN 54-24 Type B-compatible
For small venues. This speaker is ideally suited to small conference rooms, boardrooms, medium-sized classrooms, and so on.

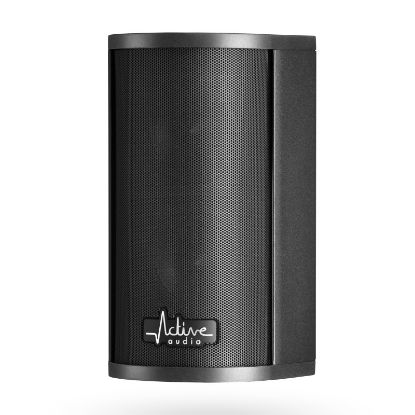

It can also be used to reinforce installations featuring R110 and R210 speakers.
Range: 12m at ±5dB


Acoustical data
Max SPL: 91dBSPL @ 5m
Sensitivity: 71dB/1W @ 5m
Range ±3dB: 6.5m
Range ±5dB: 12m
Angle of audience: 0°-5°
Frequency bandwidth: (-10dB) 120Hz-18kHz
Horizontal opening angle: ±180° (1kHz) / ±70° (4kHz)
Vertical directivity: Wavefront synthesis

Electrical data
Continous power: 75W
Nominal impedance: 8Ω
Connectors: Lever quick connector with loop-through
Protection: Thermal fuse
Certification: EN54-24 certified

Mechanical data
Dimensions (WxPxH): 128mm x 117mm x 706mm
Net / shipping weight: 5.4kg / 5.9kg
Environment: IP55 (25° - 55°) / IK08
Colors: white, black
