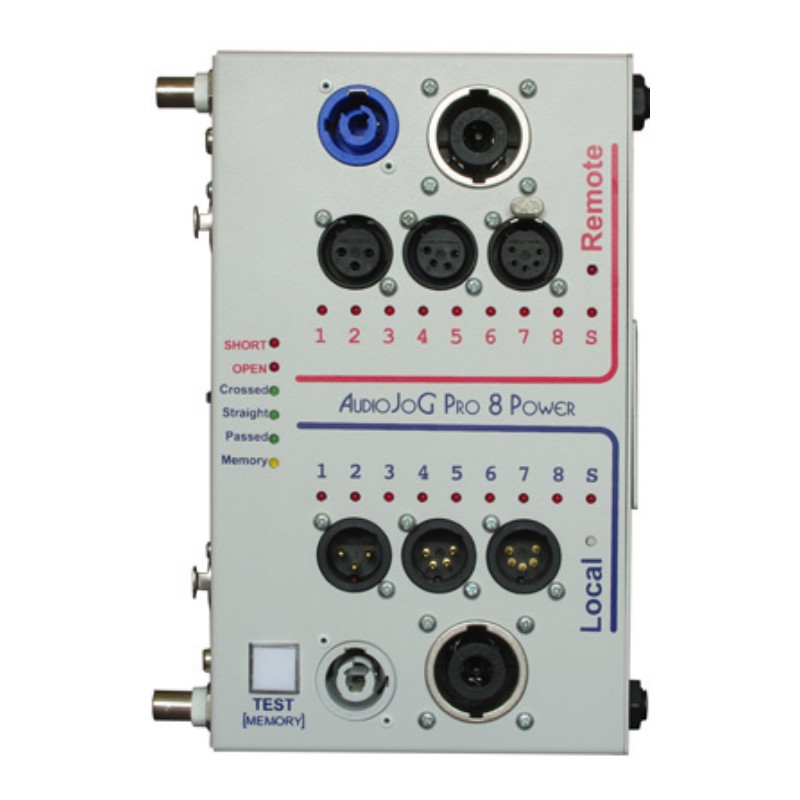

AudioJoG Pro 8 power
Features:
There are 2 rows of 9 LED's corresponding to each of thepossible connector pins and one for the screen (or ground) connection. As eachpin is activated, the LED's indicate all connections associated with that pin,so that short, open and crossed circuits can be easily found. The LED's alsoshow the possibility of high resistance or leakage connections. 2 LED'sindicate a good digital network connection, either Straight through, or Crossedover.

Connectors:
3, 4 & 5 Pole XLR Male & Female
6.35mm Jack, stereo or mono
3.5mm Jack, stereo or mono
2.5mm Jack, stereo or mono
Powercon IN & OUT
8 Pole Speakon
MINI DIN 4 Pole
DIN 3, 5 (180o) Pole
RCA Phono
BNC50/75W / HD SDI
RJ45, Ethercon
USB A & B
Mini & Micro USB
4mm Red & Black

Memory:
There are 6 LED's indicating the state of the MEMORY option.
If the MEMORY LED is on, then AudioJoG Pro 8 powerautomatically scans all the connections and compares against information heldwith just one press of the test button.
MEMORY works in singleand double ended test modes..
INTERMITTENT fault detection uses the memory tocontinuously test the cable until a fault is found.

Test Modes:
Double ended - both ends of the cable under test areplugged into the AudioJoG Pro 8 power
Single ended - one end of the cable under test isplugged into AudioJoG Pro 8power the other into another AudioJoG Pro 8power orany other compatible AudioJoG tester

Specification,Double {Single} ended:
Continuityand Short Circuits, less than 255K {75K} ohms
OpenCircuits (end to end and between connected pins), greater than 255K {75K} ohms
Lessthan 2 {5} second test time
SturdyMETAL BOX construction
L203mm W 150mm D 50mm
Uses 9v PP3 battery (notsupplied)
