Avjog
Features:

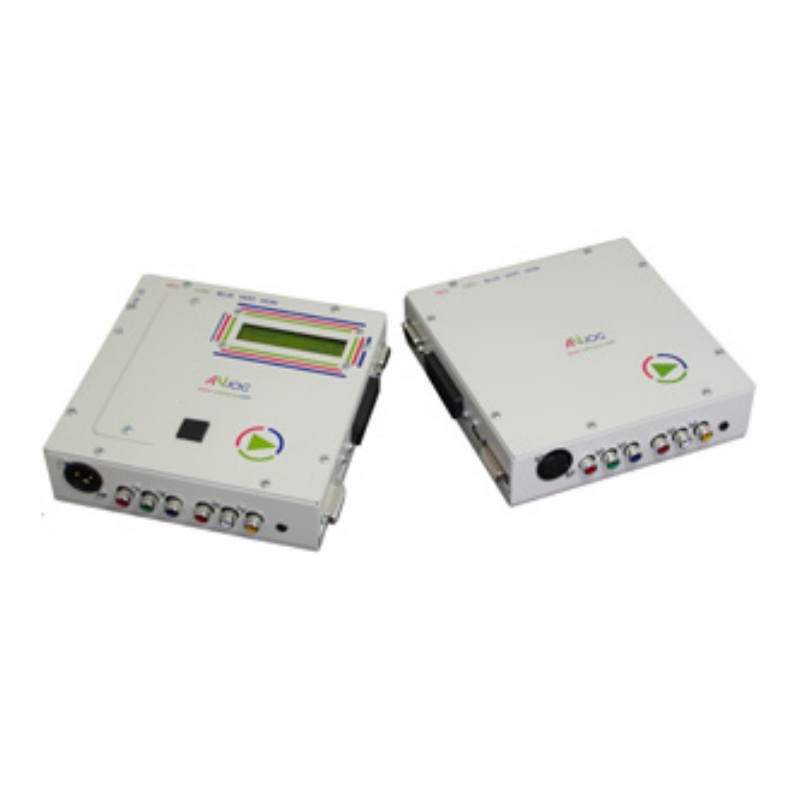

Atwo box solution to testing AV panel installations.
Eachbox only 150mm square
Easyto use with only one button operation.
LCDdisplay for test results.
Allmajor AV connectors present, no need for extra adaptors.
6V battery or Mains use.

Connectors:
DVI
HDMI
SCART
RJ45
MINI DIN 4 Pole
USB A & B
3 pole XLR Male & Female
3.5mm Jack, stereo or mono
RCA Phono RGB & RWY
BNC 50/75W / HD SDI RGB Horiz& Vert
F TYPE
COAX

Test modes:
Panel, connect both units with appropriate patch cables.Press the test button.
The Local end will identify the type of connection andif there are any open or short circuits.
Cables, plug both ends of the cable under test intothe Local unit. Press the test button.
The Local end will identify the type of connection andif there are any open or short circuits.

Specifications:
2 x 16 character LCD display
Detects Open and Short circuits.
Continuityand Short Circuits, less than 75K ohms
OpenCircuits (end to end and between connected pins), greater than 75K ohms
Lessthan 1 second test time
Requires either, 6V dc powersupply (supplied) or 4 x 1.5v AAA batteries (not supplied).
L 190mmW 160mm (19”) D 45mm (2U).
