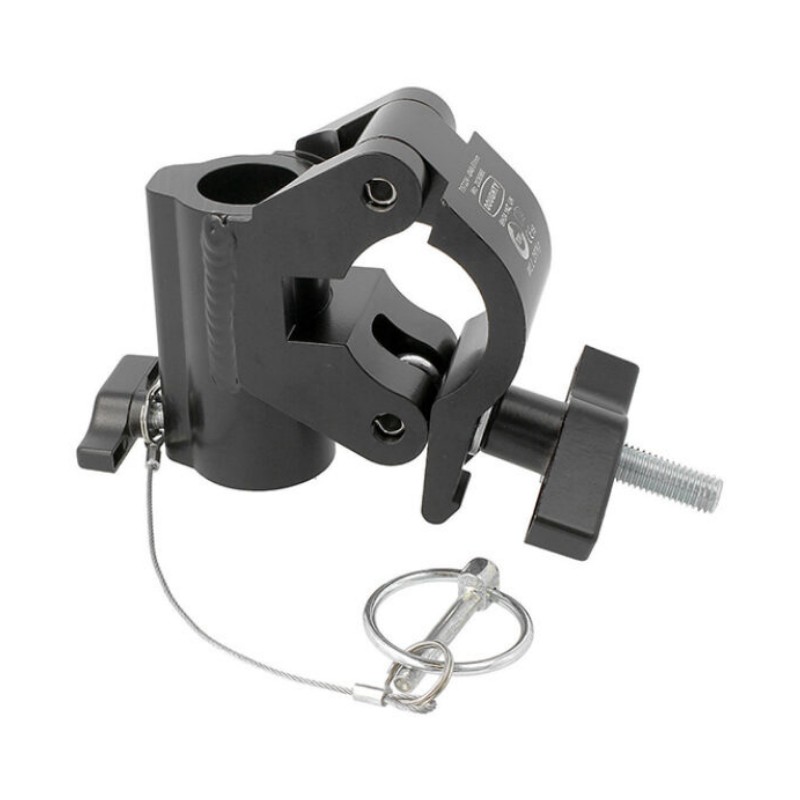

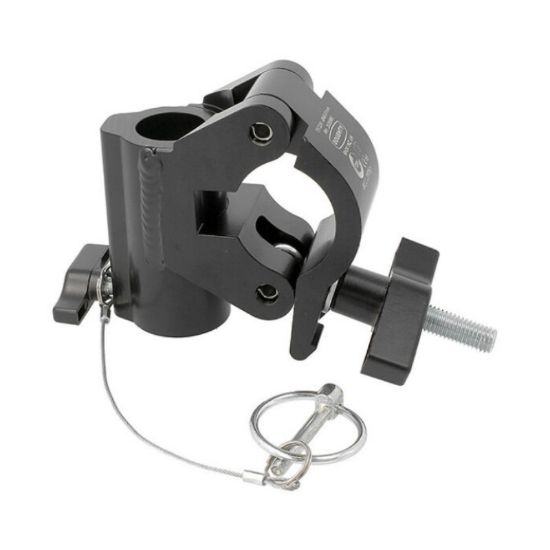

A high tensile extruded aluminium clamp that is suitable for 48mm to 51mm (1.89" – 2.01") diameter tubes and is 50mm (1.97") wide cleverly designed to accept a 28mm (1.10") diameter spigot. Supplied with lynch pin for secondary locking, this clamp is designed predominantly for use in the TV/Film industry and is used with Drop Arms and Pantographs.
Tube Diameter: O48 - 51mm
Materials:
Main Body - AW6082 T6 Aluminium
Roll Pins - Stainless Steel
Eyebolt Assy - Grade 8.8
Max Tightening Torque: 30Nm
Fixings: O29mm Receiver
WLL: 250Kg
Weight: 0.93Kg
Factor of Safety: 5:1
TUV Approved
