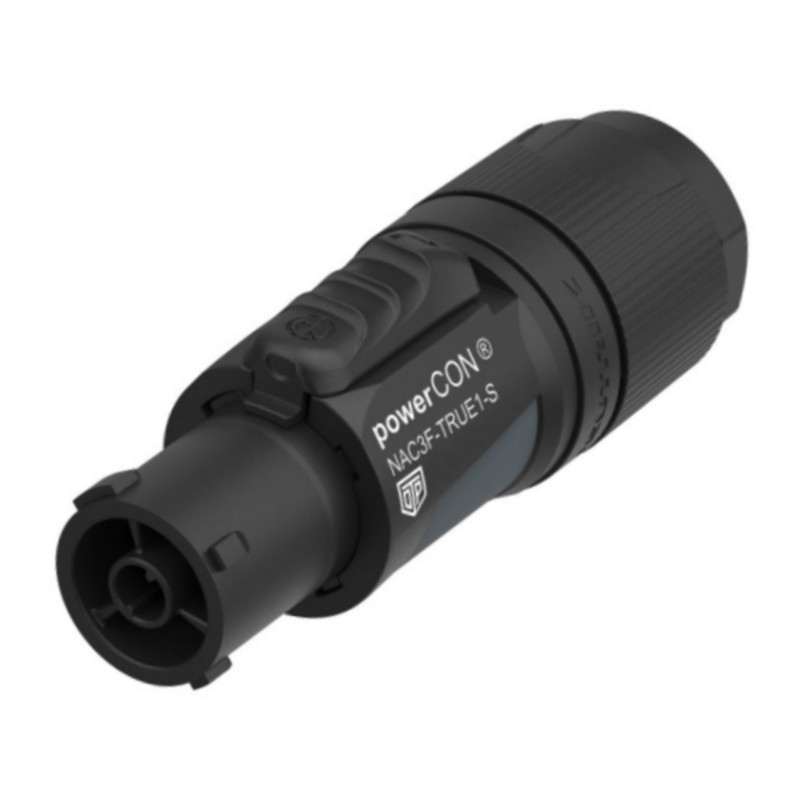

Features and Benefits
Heavy duty sealed power connector for harsh and demanding environment
Uses high impact UV-resistant materials
Lockable single phase connector Extremely robust and reliable
ENEC and VDE certified according to IEC 60320-1 and EN IEC 60320-1
UL and CSA Certified According to UL 60320-1 and CSA 22.2 No. 60320-1
IP65 and IP67 (mated or with closed cap)
True mains connector with breaking capacity (CBC)
Easy and reliable twist lock system
Unique NEUTRIK locking bushing and strain relief for cable diameters 6 mm to 12 mm (0.23 – 0.47 inches)


Electrical
Contact resistance: ? 2 mΩ
Dielectric strength: 4 kVdc / 2.8 kVac
Insulation resistance: >0.1GΩ (after damp and heat test IEC 68-2-30)
Number of electrical contacts: 2 + PE
Rating Europe: 16 A / 250 V AC according to EN IEC 60320-1
Rating America: 20 A / 250 V AC according to UL 60320-1
20 A / 250 V AC according to CSA C22.2 No. 60320-1

Mechanical
Cable O.D.: 6 - 12 mm (0.23 – 0.47 inches)
Lifetime: > 5000 mating cycles
Wiresize (mm²): 1.0 – 2.5mm²
Wiresize (AWG): 14 AWG

Material
Contact plating: 2 μm Ag
Locking element: Polyamide (PA 66)
Contacts: Copper Alloy
Insert: Polyamide (PA 66)
Shell: Polyamide (PA 66)
Strain relief: Polyketon

Environmental
Flammability: UL 94 V-0
Protection class: IP 65 / 67 (mated or with closed caps)
UV resistance: F1 rated material withstands UV exposure
Temperature range: -30°C to +80°C according to IEC 61984
-5°C to +40°C according to IEC 60320-1
