Features & Benefits

Lockable single phase connector
Certified according to IEC 60320-1 & UL 60320-1
UL US 498 / UL CA 498Certified according to UL-1977, & CAN/CSA-C22.2 No. 182.3
Extremely robust and reliable
UL94 V-0 materials
Drop-in replacement for NAC3MXXA; mates to NAC3FXXA cable connectors
3 contacts for line, neutral and premating safety ground
Fast and easy twist lock latching system

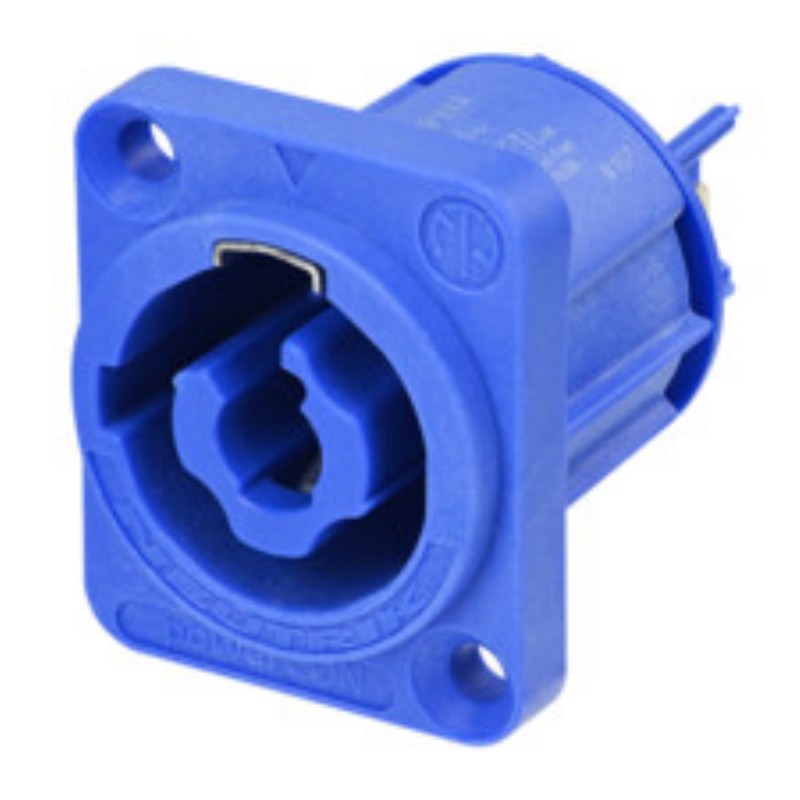

Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
Suitable for fire enclosures according. to IEC 62368-1


Electrical
Contact resistance: ? 2 mΩ
Dielectric strength: 4 kVdc / 2.8 kVac
Insulation resistance: > 1 GΩ (after damp heat test IEC 68-2-30)
Number of electrical contacts: 2 + PE
Rating Europe: EN 60320-1: 16 A 250 V AC
Rating USA / Canada: cUL 60320-1: 20 A 127 V AC
UL USA 498: 20 A 250 V AC
UL CA 498: 20 A 250 V AC
UL 1977: 20 A 250 V AC

Mechanical
Lifetime: > 5000 mating cycles
Wiresize: 2,5 mm²
Wiresize: 12 AWG

Material
Contact plating: Ag
Locking element: Stainless steel
Shell: Polyamide (PA 6.6)
Contacts: Copper Alloy

Environmental
Flammability: UL 94 V-0
Protection class: IP 20
Temperature range: -30 °C to +80 °C
