Features & Benefits

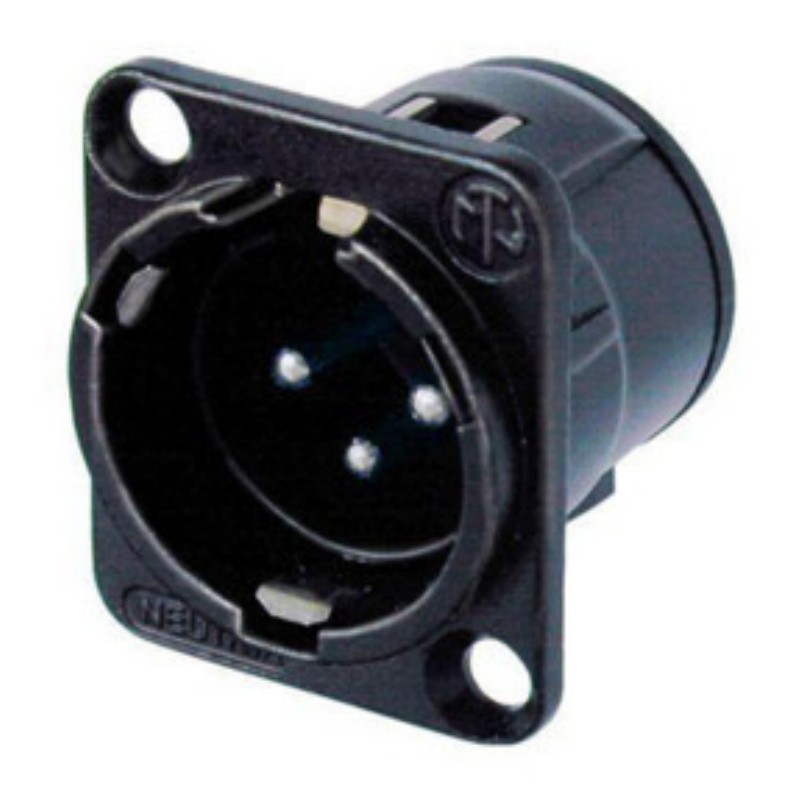

D-shape metal shell
Optimal RF protection using 3 shield contacts
Insert is removable from rear of connector and locked into place by internal latch - permitting assembling and testing of pcb before assembling into housing
Front or rear panel mount


Technical Information

Wiring: vertical PCB mount
Locking device: Latch lock
Mounting direction: Rear mounting
Chassis shape: D
Contacts: Brass (CuZn35Pb2)
Insert: PA66
Locking element: Steel Ck67
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Black chromium
Approvals: UL
Flammability: UL 94 V-0
Standard compliance: IEC 61076-2-103
Protection class: IP 40
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C
