Features:

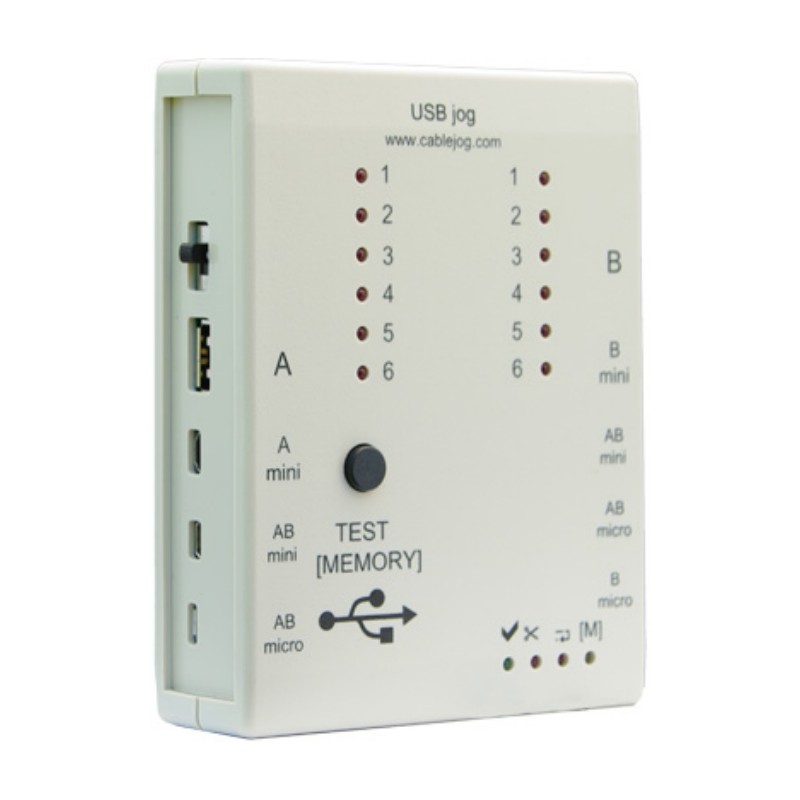

There are 2 rows of 6 LED's corresponding to each of the possible connector pins. No 6 is for the screen or ground connection. As each pin is activated, the LED's indicate all connections associated with that pin, so that short, open and crossed circuits can be easily found. The LED's also show the possibility of high resistance or leakage connections.

Connectors:
USB A
USB B
USB A mini
USB B mini
USB AB mini
USB B micro
USB AB micro

Memory:
There are 4 LEDs indicating the state of the MEMORY option.
If the MEMORY LED is on then the USB jog automatically scans all the connections and compares against infor mation held with just one press of the test button.

Test modes:
Double ended - both ends of the cable under test are plugged into the AudioJoG Pro 3.
Automatic Double ended - as above but the USB jog automatically scans all the connections and compares against information held with just one press of the button.
