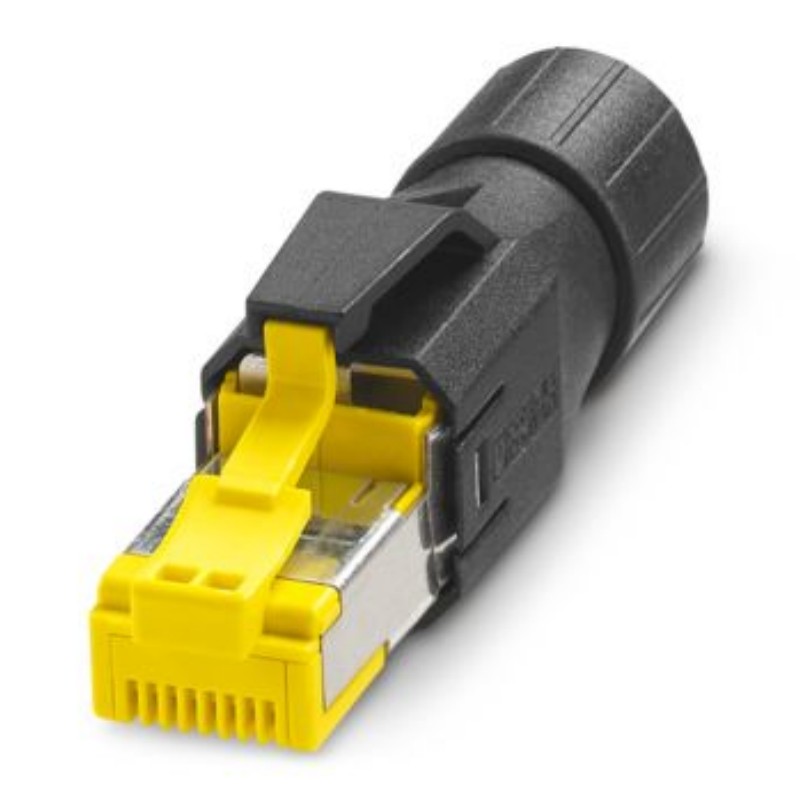

RJ45 connector, Degree of Protection: IP20, Number of Positions: 8, 10 Gbps, CAT6A, Material: Plastic, Connection Method: Insulation displacement connection, Connection Cross Section: AWG 26- 24, Cable Outlet: straight, Color: black, Ethernet

Product type: Data connector (cable side)
Type: RJ45
Sensor type: Ethernet
Number of positions: 8
No. of cable outlets: 1
Shielded: yes
Cable outlet: straight
Positions/contacts: 8P8C
Rated voltage (III/3): 72 V (DC)
Rated current: 1.75 A
Contact resistance: < 20 mΩ (Contact)
< 100 mΩ (shield)
Frequency range: to 500 MHz
Insulation resistance: > 500 MΩ
Nominal voltage UN: 48 V
Nominal current IN: 1.75 A
Contact resistance per contact pair: < 20 Ω
Contact resistance: > 10 mΩ (Wire – IDC)
0.005 Ω (Litz wires – IDC)
Transmission medium: Copper
Transmission characteristics (category): CAT6A
Transmission speed: 10 Gbps
Wave impedance: 100 Ω
